Bicycle cables

[wpcol_1third id=””class=””style””]



… And grind it.
As it comes out of the box, outer casing of both types has ground-flat ends. To maximise braking or shifting performance, the freshly-cut end must also be ground flat and square. A suitable grinder is available for around £25 from an outlet such as Machine Mart.

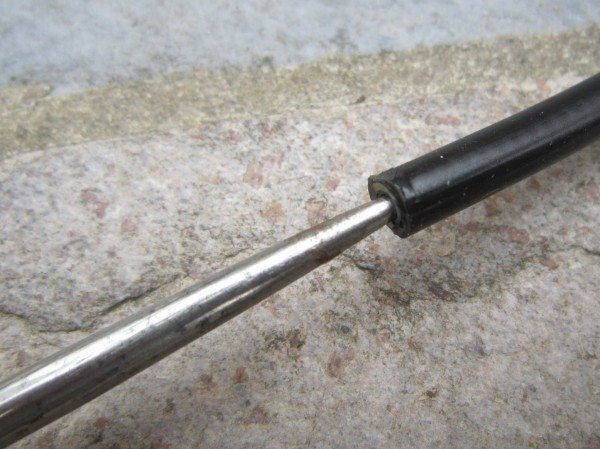

Opening up the casing liner with a scriber.

[/wpcol_1third] [wpcol_1third id=”” class=”” style=””]



The heat generated by grinding the casing melts the plastic liner. Open the end of the liner using a scriber or similar sharp implement.



So, casings cut to length, they can be installed. If this is the easy bit, it’s also the messy one. That section of the inner





[/wpcol_1third] [wpcol_1third_end id=”” class=”” style=””]



[hdp-ad 22]



wire that sits inside the casing should be lightly greased to ensure a long and reliable service life. Having greased the inner wires, clean your hands thoroughly to avoid getting grease on the bars or cable casings, where it will prevent tape from sticking.



Then fix the bicycle cables to the handlebars. Cheap, flexible, reasonably strong and waterproof, electrical insulating tape is probably the most popular choice. The key point here is to get the cables pulled really tight into the inside of the handlebar bend. There should be no space behind the cable.



…………………………………………………………………..

“So, casings cut to length,

they can be installed.

If this is the easy bit, it’s also the messy one.”

…………………………………………………………………..

[/wpcol_1third_end]
